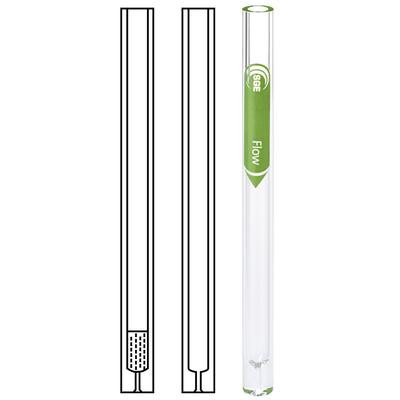

SGE Gooseneck Inlet, Liner VA78 0.75 mm ID SPME, 5-pk
- Part Number:
- 092017
- Product Type:
- Liner
- Pack Size:
- 5-pk
Description
SGE Gooseneck Inlet, Liner VA78 0.75 mm ID SPME, 5-pk
Features and benefits
- A bottom taper focuses sample onto the head of the column and minimizes sample contact with metal parts of the inlet.
- A taper at the top aids in minimizing sample flashback.
- Remember – the addition of quartz wool to your inlet liner promotes mixing of analytes, aids the vaporization of liquid samples, works as a trap to collect non-volatile residue in the sample (i.e. protects capillary column from ‘dirty’ samples).
- TI deactivated liners are optimized for EPA8270 method and are pre-fitted with an o-ring to minimize handling.
- Color coded green.
Recommended applications
Taper/Gooseneck liners are recommended for the following sample or injection modes:
- Trace level analysis
- Active Samples
- Split/Splitless injection types
Product specifications
Bottom Taper available for Agilent, PerkinElmer, Shimadzu, Thermo Scientific, and Varian/Bruker 1177 and 1078/1079 injectors.
| Injector | Length (mm) | OD (mm) | ID (mm) |
| Agilent | 78.5 | 6.3 | 4 |
| Agilent | 78.5 | 6.3 | 2.3 |
| PerkinElmer | 92 | 6.2 | 4 |
| Shimadzu | 99 | 5 | 3.4 |
| Shimadzu | 95 | 5 | 3.4 |
| Thermo | 105 | 8 | 5 |
| Thermo | 105 | 8 | 3 |
| Thermo | 78.5 | 6.3 | 4 |
| Thermo | 78.5 | 6.3 | 2.3 |
| Varian/Bruker | 78.5 | 6.3 | 4 |
| Varian/Bruker | 78.5 | 6.3 | 2.3 |
| Varian/Bruker | 54 | 5 | 3.4 |
Top Taper available for Agilent, PerkinElmer 8000 and Sigma Series, Thermo Scientific, and Varian/Bruker 1177, 1075/1077 and 1078/1079 injectors.
| Injector | Length (mm) | OD (mm) | ID (mm) |
| Agilent | 78.5 | 6.3 | 4 |
| PerkinElmer | 100 | 5 | 2 |
| Shimadzu | 99 | 5 | 3.4 |
| Thermo | 105 | 8 | 5 |
| Thermo | 78.5 | 6.3 | 4 |
| Varian/Bruker | 78.5 | 6.3 | 4 |
| Varian/Bruker | 72 | 6.3 | 4 |
| Varian/Bruker | 74 | 6.3 | 4 |
| Varian/Bruker | 74 | 6.3 | 2 |
| Varian/Bruker | 54 | 5 | 1.8/3.4 |
Gooseneck available for Agilent, Shimadzu, and Varian/Bruker 1177 injectors.
| Injector | Length (mm) | OD (mm) | ID (mm) |
| Agilent | 78.5 | 6.3 | 4 |
| Agilent | 78.5 | 6.3 | 2.3 |
| Shimadzu | 99 | 5 | 3.4 |
| Shimadzu | 95 | 5 | 3.4 |
| Varian/Bruker | 78.5 | 6.3 | 4 |
| Varian/Bruker | 78.5 | 6.3 | 2 |
